Sheetz Virginia Stock
This stock is shaped from an original John Jacob Sheetz Virginia rifle decorated in silver inlays and brass mountings. We had access to two rifles, each with a different triggerguard style. One smaller guard for single trigger bow and one for a larger double trigger. Both of these guards have been produced and match the buttplate of both rifles. The original rifle had a swamped barrel, but this stock is available in straight octagon barrels up to 7/8”; and, A & B weight barrels. The Sheets family is one of the most gifted families in the gunsmithing world ever known. I purposely had this pattern made full so that all (that I am aware of) Sheets styles can be made from this basic architecture. Note in our new list of patchboxes the choices of Virginia patchboxes you have! Also matching sideplates can be made if you don’t see the one you need! Right hand only.
MOUNTINGS
27576 Sheetz Buttplate (Brass)
27571 Sheetz Triggerguard (Brass)
13610 Rear Octagon Thimble (Brass)
13670 Upper Octagon Thimbles (Brass)
11476 J.J. Sheetz Sideplate (Brass)
12730 Toeplate (Brass)
12860 Nosecap (Brass)
31922 J.J. Sheetz Patchbox (Brass)
10140 Patchbox Release Kit (Brass)
16500 Front Sight (Silver Blade)
16540 Rear Sight (Early Low)
STANDARD SPECIFICATIONS
Straight Octagon barrels....................13/16", 7/8"
Drilled ramrod hole ......................................3/8"
Barrel Channel Length....................................42"
Butt width x height……......................5” x 1-5/8”
Lock area ……….......................1-1/2” x 6-1/2”
Width across the lock face…...................1-9/16”
Drop at the heel ………...........................3-1/2”
Trigger Pulls up to 15”

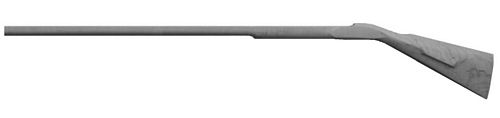

PRE-SHAPED STOCK
31132 P+ Grade Curly Maple
31133 P++ Grade Curly Maple
31134 SP Grade Curly Maple
31135 SP+ Grade Curly Maple
31137 Cherry
30820 Inlet Lock (for Siler only)
30830 Inlet Trigger
15975 Inlet Swampled Barrel
STANDARD FITTINGS & PARTS
14925 Siler Flintlock
14870 Davis Small Double Set trigger
19380 .50 x 7/8 " x 42 " Green Mountain Barrel
16080 Flared Tang Breech Plug 5/8-18
21180 1/4-28 Stainless Slot Head Touchhole Liner
16430 2 ea. 3/8" Flat Head 8-32 Lock Screw
16450 1 ea, Tang Screw 8-32
27600 3 ea. Underlugs for Pins
16380 1 Pkg of 12 Oval Head #3 Wood Screws
16390 1 Pkg of 12 Oval Head #5 Wood Screws
16400 1 Pkg of 12 Oval Head #8 Wood Screws
25450 1 Pkg German Silver Nails for Inlay
24630 1 Pkg of 6 Pieces Pin Stock 1/16"o.d.
16795 3/8" Ram Rod w/ 8-32 Brass Tip
